2.2 Hello Web! II: The Sequel

Let's make our applet a little more interactive, shall we? The following improvement, HelloWeb2, allows us to drag the message around with the mouse. HelloWeb2 is also customizable. It takes the text of its message from a parameter of the <applet> tag of the HTML document.

HelloWeb2 is a new applet--another subclass of the Applet class. In that sense, it's a sibling of HelloWeb. Having just seen inheritance at work, you might wonder why we aren't creating a subclass of HelloWeb and exploiting inheritance to build upon our previous example and extend its functionality. Well, in this case, that would not necessarily be an advantage, and for clarity we simply start over.[2] Here is HelloWeb2:

[2] You are left to consider whether such a subclassing would even make sense. Should HelloWeb2 really be a kind of HelloWeb? Are we looking for refinement or just code reuse?

import java.applet.Applet;
import java.awt.*;
import java.awt.event.*;
public class HelloWeb2 extends Applet implements MouseMotionListener {
    int messageX = 125, messageY = 95;
    String theMessage;

    public void init() {
        theMessage = getParameter("message");
        addMouseMotionListener(this);
    }

    public void paint( Graphics graphics ) {
        graphics.drawString( theMessage, messageX, messageY );
    }
    public void mouseDragged( MouseEvent e ) {
        messageX = e.getX();
        messageY = e.getY();
        repaint();
    }
    public void mouseMoved( MouseEvent e ) { }
}

Place the text of this example in a file called HelloWeb2.java and compile it as before. You should get a new class file, HelloWeb2.class, as a result. We need to create a new <applet> tag for HelloWeb2. You can either create another HTML document (copy HelloWeb.html and modify it) or simply add a second <applet> tag to the existing HelloWeb.html file. The <applet> tag for HelloWeb2 has to use a parameter; it should look like:

<applet code=HelloWeb2 width=300 height=200>
<param name="message" value="Hello Web!" >
</applet>

Feel free to substitute your own salacious comment for the value of message.

Run this applet in your Java-enabled Web browser, and enjoy many hours of fun, dragging the text around with your mouse.

Import

So, what have we added? First you may notice that a few lines are now hovering above our class:

import java.applet.Applet;
import java.awt.*;
import java.awt.event.*;
public class HelloWeb2 extends Applet implements MouseMotionListener {
...

The import statement lists external classes to use in this file and tells the compiler where to look for them. In our first HellowWeb example, we designated the Applet class as the superclass of HelloWeb. Applet was not defined by us and the compiler therefore had to look elsewhere for it. In that case, we referred to Applet by its fully qualified name, java.applet.Applet, which told the compiler that Applet belongs to the java.applet package so it knew where to find it.

The import statement is really just a convenience; by importing java.applet.Applet in our newer example, we tell the compiler up front we are using this class and, thereafter in this file, we can simply refer to it as Applet. The second import statement makes use of the wildcard "*" to tell the compiler to import all of the classes in the java.awt package. But don't worry, the compiled code doesn't contain any excess baggage. Java doesn't do things like that. In fact, compiled Java classes don't contain other classes at all; they simply note their relationships. Our current example uses only the java.awt.Graphics class. However, we are anticipating using several more classes from this package in the upcoming examples. We also import all the classes from the package java.awt.event; these classes provide the Event objects that we use to communicate with the user. By listening for events, we find out when the user moved the mouse, clicked a button, and so on. Notice that importing java.awt.* doesn't automatically import the event package. The star only imports the classes in a particular package, not other packages.

The import statement may seem a bit like the C or C++ preprocessor #include statement, which injects header files into programs at the appropriate places. This is not true; there are no header files in Java. Unlike compiled C or C++ libraries, Java binary class files contain all necessary type information about the classes, methods, and variables they contain, obviating the need for prototyping.

Instance Variables

We have added some variables to our example:

public class HelloWeb2 extends Applet {
    int messageX = 125, messageY = 95;
    String theMessage;
...

messageX and messageY are integers that hold the current coordinates of our movable message. They are initialized to default values, which should place a message of our length somewhere near the center of the applet. Java integers are always 32-bit signed numbers. There is no fretting about what architecture your code is running on; numeric types in Java are precisely defined. The variable theMessage is of type String and can hold instances of the String class.

You should note that these three variables are declared inside the braces of the class definition, but not inside any particular method in that class. These variables are called instance variables because they belong to the entire class, and copies of them appear in each separate instance of the class. Instance variables are always visible (usable) in any of the methods inside their class. Depending on their modifiers, they may also be accessible from outside the class.

Unless otherwise initialized, instance variables are set to a default value of 0 (zero), false, or null. Numeric types are set to zero, boolean variables are set to false, and class type variables always have their value set to null, which means "no value." Attempting to use an object with a null value results in a run-time error.

Instance variables differ from method arguments and other variables that are declared inside of a single method. The latter are called local variables. They are effectively private variables that can be seen only by code inside the method. Java doesn't initialize local variables, so you must assign values yourself. If you try to use a local variable that has not yet been assigned a value, your code will generate a compile-time error. Local variables live only as long as the method is executing and then disappear (which is fine since nothing outside of the method can see them anyway). Each time the method is invoked, its local variables are recreated and must be assigned values.

Methods

We have made some changes to our previously stodgy paint() method. All of the arguments in the call to drawString() are now variables.

Several new methods have appeared in our class. Like paint(), these are methods of the base Applet class we override to add our own functionality. init() is an important method of the Applet class. It's called once, when our applet is created, to give us an opportunity to do any work needed to set up shop. init() is a good place to allocate resources and perform other activities that need happen only once in the lifetime of the applet. A Java-enabled Web browser calls init() when it prepares to place the Applet on a page.

Our overridden init() method does two things; it sets the text of the theMessage instance variable, and it tells the system "Hey, I'm interested in anything that happens involving the mouse":

public void init() {
    theMessage = getParameter("message");
    addMouseMotionListener(this);
}

When an applet is instantiated, the parameters given in the <applet> tag of the HTML document are stored in a table and made available through the getParameter() method. Given the name of a parameter, this method returns the value as a String object. If the name is not found, it returns a null value.

So what, you may ask, is the type of the argument to the getParameter() method? It, too, is a String. With a little magic from the Java compiler, quoted strings in Java source code are turned into String objects. A bit of funny-business is going on here, but it's simply for convenience. (See Chapter 7, Basic Utility Classes for a complete discussion of the String class.)

getParameter() is a public method we inherited from the Applet class. We can use it from any of our methods. Note that the getParameter() method is invoked directly by name; there is no object name prepended to it with a dot. If a method exists in our class, or is inherited from a superclass, we can call it directly by name.

In addition, we can use a special read-only variable, called this, to explicitly refer to our object. A method can use this to refer to the instance of the object that holds it. The following two statements are therefore equivalent:

theMessage = getParameter("message");

or

theMessage = this.getParameter("message");

I'll always use the shorter form. We will need the this variable later when we have to pass a reference to our object to a method in another class. We often do this so that methods in another class can give us a call back later or can watch our public variables.

The other method that we call in init() is addMouseMotionListener(). This method is part of the event mechanism, which we discuss next.

Events

The last two methods of HelloWeb2 let us get information from the mouse. Each time the user performs an action, such as hitting a key on the keyboard, moving the mouse, or perhaps banging his or her head against a touch-sensitive screen, Java generates an event. An event represents an action that has occurred; it contains information about the action, such as its time and location. Most events are associated with a particular graphical user interface (GUI) component in an application. A keystroke, for instance, could correspond to a character being typed into a particular text entry field. Pressing a mouse button could cause a certain graphical button on the screen to activate. Even just moving the mouse within a certain area of the screen could be intended to trigger effects such as highlighting or changing the cursor to a special mouse cursor.

The way events work is one of the biggest changes between Java 1.0 and Java 1.1. We're going to talk about the Java 1.1 events only; they're a big improvement, and there's no sense in learning yesterday's news. In Java 1.1, there are many different event classes: MouseEvent, KeyEvent, ActionEvent, and many others. For the most part, the meaning of these events is fairly intuitive. A MouseEvent occurs when the user does something with the mouse, a KeyEvent occurs when the user types a key, and so on. ActionEvent is a little special; we'll see it at work in our third applet. For now, we'll focus on dealing with a MouseEvent.

The various GUI components in Java generate events. For example, if you click the mouse inside an applet, the applet generates a mouse event. (In the future, we will probably see events as a general purpose way to communicate between Java objects; for the moment, let's limit ourselves to the simplest case.) In Java 1.1, any object can ask to receive the events generated by some other component. We call the object that wants to receive events a "listener." To declare that it wants to receive some component's mouse motion events, you call that component's addMouseMotionListener() method. That's what our applet is doing in init(). In this case, the applet is calling its own addMouseMotionListener() method, with the argument this, meaning "I want to receive my own mouse motion events." (For the time being, we're ignoring a minor distinction between "mouse events" and "mouse motion events." Suffice it to say that in this example, we only care about mouse motions.)

That's how we register to receive events. But how do we actually get them? That's what the two remaining methods in our applet are for. The mouseDragged() method is called automatically whenever the user drags the mouse--that is, moves the mouse with any button pressed. The mouseMoved() method is called whenever the user moves the mouse without pressing a button. Our mouseMoved() method is simple: it doesn't do anything. We're ignoring simple mouse motions.

mouseDragged() has a bit more meat to it. It is called repeatedly to give us updates on the position of the mouse. Here it is:

    public void mouseDragged( MouseEvent e ) {
        messageX = e.getX();
        messageY = e.getY();
        repaint();
    }

The first argument to mouseDragged() is a MouseEvent object, e, that contains all the information we need to know about this event. We ask the MouseEvent to tell us the x and y coordinates of the mouse's current position by calling its getX() and getY() methods. These are saved in the messageX and messageY instance variables. Now, having changed the coordinates for the message, we would like HelloWeb2 to redraw itself. We do this by calling repaint(), which asks the system to redraw the screen at a later time. We can't call paint() directly because we don't have a graphics context to pass to it.

The real beauty of this event model is that you only have to handle the kinds of events you want. If you don't care about keyboard events, you just don't register a listener for them; the user can type all he or she wants, and you won't be bothered. Java doesn't go around asking potential recipients whether they might be interested in some event, as it did in older versions. If there are no listeners for a particular kind of event, Java won't even generate it. The result is that event handling in Java 1.1 is quite efficient.

I've danced around one question that should be bothering you by now: how does the system know to call mouseDragged() and mouseMoved()? And why do we have to supply a mouseMoved() method that doesn't do anything? The answer to these questions has to do with "interfaces." We'll discuss interfaces after clearing up some unfinished business with repaint().

The repaint() Method

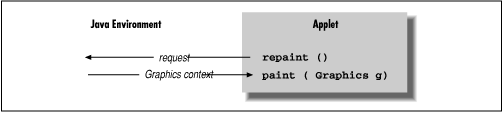

We can use the repaint() method of the Applet class to request our applet be redrawn. repaint() causes the Java windowing system to schedule a call to our paint() method at the next possible time; Java supplies the necessary Graphics object, as shown in Figure 2.5.

This mode of operation isn't just an inconvenience brought about by not having the right graphics context handy at the moment. The foremost advantage to this mode of operation is that the repainting is handled by someone else, while we are free to go about our business. The Java system has a separate, dedicated thread of execution that handles all repaint() requests. It can schedule and consolidate repaint() requests as necessary, which helps to prevent the windowing system from being overwhelmed during painting-intensive situations like scrolling. Another advantage is that all of the painting functionality can be kept in our paint() method; we aren't tempted to spread it throughout the application.

Interfaces

Now it's time to face up to the question I avoided earlier: how does the system know to call mouseDragged() when a mouse event occurs? Is it simply a matter of knowing that mouseDragged() is some magic name that our event handling method must have? No; the answer to the question lies in the discussion of interfaces, which are one of the most important features of the Java language.

The first sign of an interface comes on the line of code that introduces the HelloWeb2 applet: we say that the applet implements MouseMotionListener. MouseMotionListener is an interface that the applet implements. Essentially, it's a list of methods that the applet must have; this particular interface requires our applet to have methods called mouseDragged() and mouseMoved(). The interface doesn't say what these methods have to do--and indeed, mouseMoved() doesn't do anything. It does say that the methods must take a MouseEvent as an argument and return void (i.e., no return value).

Another way of looking at an interface is as a contract between you, the code developer, and the compiler. By saying that your applet implements the MouseMotionListener interface, you're saying that these methods will be available for other parts of the system to call. If you don't provide them, the compiler will notice and give you an error message.

But that's not the only impact interfaces have on this program. An interface also acts like a class. For example, a method could return a MouseMotionListener, or take a MouseMotionListener as an argument. This means that you don't care about the object's class; the only requirement is that the object implement the given interface. In fact, that's exactly what the method addMouseMotionListener() does. If you look up the documentation for this method, you'll find that it takes a MouseMotionListener as an argument. The argument we pass is this, the applet itself. The fact that it's an applet is irrelevant, it could be a Cookie, an Aardvark, or any other class we dream up. What is important is that it implements MouseMotionListener, and thus declares that it will have the two named methods. That's why we need a mouseMoved() method, even though the one we supplied doesn't do anything: the MouseMotionListener interface says we have to have one.

In other languages, you'd handle this problem by passing a function pointer; for example, in C, the argument to addMouseMotionListener() might be a pointer to the function you want to have called when an event occurs. This technique is called a "callback." For security reasons, the Java language has eliminated function pointers. Instead, we use interfaces to make contracts between classes and the compiler. (Some new features of the language make it easier to do something similar to a callback, but that's beyond the present discussion.)

The Java distribution comes with many interfaces that define what classes have to do in various situations. Furthermore, in Chapter 5, Objects in Java, you'll see how to define your own interfaces. It turns out that this idea of a contract between the compiler and a class is very important. There are many situations like the one we just saw, where you don't care what class something is, you just care that it has some capability, like listening for mouse events. Interfaces give you a way of acting on objects based on their capabilities, without knowing or caring about their actual type.

Furthermore, interfaces provide an important escape clause to the rule that any new class can only extend a single class (formally called "single inheritance"). They provide most of the advantages of multiple inheritance (a feature of languages like C++) without the confusion. A class in Java can only extend one class, but can implement as many interfaces as it wants; our next applet will implement two interfaces, and the final example in this chapter will implement three. In many ways, interfaces are almost like classes, but not quite. They can be used as data types, they can even extend other interfaces (but not classes), and can be inherited by classes (if class A implements interface B, subclasses of A also implement B). The crucial difference is that applets don't actually inherit methods from interfaces; the interfaces only specify the methods the applet must have.
