Chapter 26. The javax.crypto Package

The javax.crypto package defines classes and interfaces for various cryptographic operations. Figure 26-1 shows the class hierarchy of this package. The central class is Cipher, which is used to encrypt and decrypt data. CipherInputStream and CipherOutputStream are utility classes that use a Cipher object to encrypt or decrypt streaming data. SealedObject is another important utility class that uses a Cipher object to encrypt an arbitrary serializable Java object.

figure

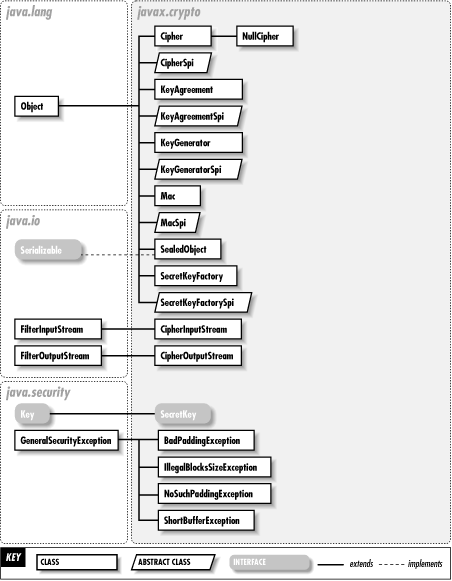

Figure 26-1. The javax.crypto package

The KeyGenerator class creates the SecretKey objects used by Cipher for encryption and decryption. SecretKeyFactory encodes and decodes SecretKey objects. The KeyAgreement class enables two or more parties to agree on a SecretKey in such a way that an eavesdropper cannot determine the key. The Mac class computes a message authentication code (MAC) that can ensure the integrity of a transmission between two parties who share a SecretKey. A MAC is akin to a digital signature, except that it is based on a secret key instead of a public/private key pair.

Like the java.security package, the javax.crypto package is provider-based, so that arbitrary cryptographic implementations may be plugged into any Java installation. Various classes in this package have names that end in "Spi". These classes define a service-provider interface and must be implemented by each cryptographic provider that wishes to provide an implementation of a particular cryptographic service or algorithm.

This package is part of the Java Cryptography Extension ( JCE). Sun distributes the JCE within the United States and Canada, but, unfortunately, U.S. export regulations prohibit the export of cryptographic technology to other countries. If you are not a resident of the United States or Canada, you have to obtain and use a third-party implementation of the JCE developed outside of the United States. The JCE is distributed with a cryptographic provider named "SunJCE" that includes a robust set of implementations for Cipher, KeyAgreement, Mac, and other classes. Installing the JCE extension is not the same, however, as installing the SunJCE provider. To make the SunJCE provider permanently available on a Java installation, you must edit the ${java.home}/lib/security/java.security file in the Java installation to add a line such as the following:

security.provider.2=com.sun.crypto.provider.SunJCE

The digit 2 in the line above specifies the preference order of the provider; you can use a different number.

If the SunJCE provider is not statically installed as above, you can dynamically install it in an application with code such as the following:

import java.security.*;
Provider sunjce = new com.sun.crypto.provider.SunJCE();
Security.addProvider(sunjce);

A full tutorial on cryptography is beyond the scope of this chapter and of this book. In order to use this package, you need to have a basic understanding of cryptographic algorithms such as DES. In order to take full advantage of this package, you also need to have a detailed understanding of things like feedback modes, padding schemes, the Diffie-Hellman key-agreement protocol, and so on. For a good introduction to modern cryptography in Java, see Java Cryptography by Jonathan Knudsen (O'Reilly). For more in-depth coverage, not specific to Java, see Applied Cryptography by Bruce Schneier (Wiley).

BadPaddingExceptionJCE 1.2
javax.cryptoserializable checked

Signals that input data to a Cipher is not padded correctly.

public class BadPaddingException extends java.security.GeneralSecurityException {
// Public Constructors
public BadPaddingException ();
public BadPaddingException (String msg);
}

Hierarchy: Object-->Throwable(Serializable)-->Exception-->java.security.GeneralSecurityException-->BadPaddingException

Thrown By: Cipher.doFinal(), CipherSpi.engineDoFinal(), SealedObject.getObject()

CipherJCE 1.2
javax.crypto

This class performs encryption and decryption of byte arrays. Cipher is provider-based, so to obtain a Cipher object, you must call the static getInstance() factory method. The arguments to this method are a string that describes the type of encryption desired and, optionally, the name of the provider whose implementation should be used. To specify the desired type of encryption, you can simply specify the name of an encryption algorithm, such as "DES". Or you can specify a three-part name that includes the encryption algorithm, the algorithm operating mode, and the padding scheme. These three parts are separated by slash characters, as in "DES/CBC/PKCS5Padding". Finally, if you are requesting a block cipher algorithm in a stream mode, you can specify the number of bits to be processed at a time by following the name of the feedback mode with a number of bits. For example: "DES/CFB8/NoPadding".

The "SunJCE" provider supports the following cryptographic algorithms:

"DES"

The Digital Encryption Standard.

"DESede"

Triple DES encryption, also known as "TripleDES".

"Blowfish"

The Blowfish block cipher designed by Bruce Schneier.

"PBEWithMD5AndDES"

A password-based encryption scheme specified in PKCS#5. This algorithm implicitly uses "CBC" mode and the "PKCS5Padding" padding; it cannot be used with other modes or padding schemes.

"PBEWithMD5AndTripleDES"

Password-based encryption as above, but using DESede instead of DES.

SunJCE supports the following operating modes:

"ECB"

Electronic Codebook mode

"CBC"

Cipher Block Chaining mode

"CFB"

Cipher Feedback mode

"OFB"

Output Feedback mode

"PCBC"

Plaintext Cipher Block Chaining mode

Finally, the "SunJCE" provider also supports two padding schemes: "NoPadding" and "PKCS5Padding". The name "SSL3Padding" is reserved, but this padding scheme is not implemented in the current release of "SunJCE".

Once you have obtained a Cipher object for the desired cryptographic algorithm, mode, and padding scheme, you must initialize it by calling one of the init() methods. The first argument to init() is one of the constants ENCRYPT_MODE or DECRYPT_MODE. The second argument is a java.security.Key object that performs the encryption or decryption. If you use one of the symmetric (i.e., non-public key) encryption algorithms supported by the "SunJCE" provider, this Key object is a SecretKey implementation. You can optionally pass a java.security.SecureRandom object to init() to provide a source of randomness. If you do not, the Cipher implementation provides its own pseudo-random number generator.

Some cryptographic algorithms require additional initialization parameters; these can be passed to init() as a java.security.AlgorithmParameters object or as a java.security.spec.AlgorithmParameterSpec object. When encrypting, you can omit these parameters, and the Cipher implementation uses default values or generates appropriate random parameters for you. In this case, you should call getParameters() after performing encryption to obtain the AlgorithmParameters used to encrypt. These parameters are required in order to decrypt, and must therefore be saved or transferred along with the encrypted data. Of the algorithms supported by the "SunJCE" provider, the block ciphers "DES", "DESede", and "Blowfish" all require an initialization vector when they are used in "CBC", "CFB", "OFB", or "PCBC" mode. You can represent an initialization vector with a javax.crypto.spec.IvParameterSpec object and obtain the raw bytes of the initialization vector used by a Cipher with the getIV() method. The "PBEWithMD5AndDES" algorithm requires a salt and iteration count as parameters. These can be specified with a javax.crypto.spec.PBEParameterSpec object.

Once you have obtained and initialized a Cipher object, you are ready to use it for encryption or decryption. If you have only a single array of bytes to encrypt or decrypt, pass that input array to one of the doFinal() methods. Some versions of this method return the encrypted or decrypted bytes as the return value of the function. Other versions store the encrypted or decrypted bytes to another byte array you specify. If you choose to use one of these latter methods, you should first call getOutputSize() to determine the required size of the output array. If you want to encrypt or decrypt data from a streaming source or have more than one array of data, pass the data to one of the update() methods, calling it as many times as necessary. Then pass the last array of data to one of the doFinal() methods. If you are working with streaming data, consider using the CipherInputStream and CipherOutputStream classes instead.

public class Cipher {
// Protected Constructors
protected Cipher (CipherSpi cipherSpi, java.security.Provider provider, String transformation);
// Public Constants
public static final int DECRYPT_MODE ; =2
public static final int ENCRYPT_MODE ; =1
// Public Class Methods
public static final Cipher getInstance (String transformation) throws java.security.NoSuchAlgorithmExceptionNoSuchPaddingException;
public static final Cipher getInstance (String transformation, String provider) throws java.security.NoSuchAlgorithmExceptionjava.security.NoSuchProviderExceptionNoSuchPaddingException;
// Property Accessor Methods (by property name)
public final String getAlgorithm ();
public final int getBlockSize ();
public final byte[ ] getIV ();
public final java.security.AlgorithmParameters getParameters ();
public final java.security.Provider getProvider ();
// Public Instance Methods
public final byte[ ] doFinal () throws java.lang.IllegalStateExceptionIllegalBlockSizeExceptionBadPaddingException;
public final byte[ ] doFinal (byte[ ] input) throws java.lang.IllegalStateExceptionIllegalBlockSizeExceptionBadPaddingException;
public final int doFinal (byte[ ] output, int outputOffset) throws java.lang.IllegalStateExceptionIllegalBlockSizeExceptionShortBufferExceptionBadPaddingException;
public final byte[ ] doFinal (byte[ ] input, int inputOffset, int inputLen) throws java.lang.IllegalStateExceptionIllegalBlockSizeExceptionBadPaddingException;
public final int doFinal (byte[ ] input, int inputOffset, int inputLen, byte[ ] output) throws java.lang.IllegalStateExceptionShortBufferExceptionIllegalBlockSizeExceptionBadPaddingException;
public final int doFinal (byte[ ] input, int inputOffset, int inputLen, byte[ ] output, int outputOffset) throws java.lang.IllegalStateExceptionShortBufferExceptionIllegalBlockSizeExceptionBadPaddingException;
public final int getOutputSize (int inputLen) throws java.lang.IllegalStateException;
public final void init (int opmode, java.security.Key key) throws java.security.InvalidKeyException;
public final void init (int opmode, java.security.Key key, java.security.SecureRandom random) throws java.security.InvalidKeyException;
public final void init (int opmode, java.security.Key key, java.security.spec.AlgorithmParameterSpec params) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
public final void init (int opmode, java.security.Key key, java.security.AlgorithmParameters params) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
public final void init (int opmode, java.security.Key key, java.security.spec.AlgorithmParameterSpec params, java.security.SecureRandom random) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
public final void init (int opmode, java.security.Key key, java.security.AlgorithmParameters params, java.security.SecureRandom random) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
public final byte[ ] update (byte[ ] input) throws java.lang.IllegalStateException;
public final byte[ ] update (byte[ ] input, int inputOffset, int inputLen) throws java.lang.IllegalStateException;
public final int update (byte[ ] input, int inputOffset, int inputLen, byte[ ] output) throws java.lang.IllegalStateExceptionShortBufferException;
public final int update (byte[ ] input, int inputOffset, int inputLen, byte[ ] output, int outputOffset) throws java.lang.IllegalStateExceptionShortBufferException;
}

Subclasses: NullCipher

Passed To: CipherInputStream.CipherInputStream(), CipherOutputStream.CipherOutputStream(), SealedObject.{getObject(), SealedObject()}

Returned By: Cipher.getInstance()

CipherInputStreamJCE 1.2
javax.crypto

This class is an input stream that uses a Cipher object to encrypt or decrypt the bytes it reads from another stream. You must initialize the Cipher object before passing it to the CipherInputStream() constructor.

public class CipherInputStream extends java.io.FilterInputStream {
// Public Constructors
public CipherInputStream (java.io.InputStream is, Cipher c);
// Protected Constructors
protected CipherInputStream (java.io.InputStream is);
// Public Methods Overriding FilterInputStream
public int available () throws java.io.IOException;
public void close () throws java.io.IOException;
public boolean markSupported (); constant
public int read () throws java.io.IOException;
public int read (byte[ ] b) throws java.io.IOException;
public int read (byte[ ] b, int off, int len) throws java.io.IOException;
public long skip (long n) throws java.io.IOException;
}

Hierarchy: Object-->java.io.InputStream-->java.io.FilterInputStream-->CipherInputStream

CipherOutputStreamJCE 1.2
javax.crypto

This class is an output stream that uses a Cipher object to encrypt or decrypt bytes before passing them to another output stream. You must initialize the Cipher object before passing it to the CipherOutputStream() constructor. If you are using a Cipher with any kind of padding, you must not call flush() until you are done writing all data to the stream; otherwise decryption fails.

public class CipherOutputStream extends java.io.FilterOutputStream {
// Public Constructors
public CipherOutputStream (java.io.OutputStream os, Cipher c);
// Protected Constructors
protected CipherOutputStream (java.io.OutputStream os);
// Public Methods Overriding FilterOutputStream
public void close () throws java.io.IOException;
public void flush () throws java.io.IOException;
public void write (byte[ ] b) throws java.io.IOException;
public void write (int b) throws java.io.IOException;
public void write (byte[ ] b, int off, int len) throws java.io.IOException;
}

Hierarchy: Object-->java.io.OutputStream-->java.io.FilterOutputStream-->CipherOutputStream

CipherSpiJCE 1.2
javax.crypto

This abstract class defines the service-provider interface for Cipher. A cryptographic provider must implement a concrete subclass of this class for each encryption algorithm it supports. A provider can implement a separate class for each combination of algorithm, mode, and padding scheme it supports or implement more general classes and leave the mode and/or padding scheme to be specified in calls to engineSetMode() and engineSetPadding(). Applications never need to use or subclass this class.

public abstract class CipherSpi {
// Public Constructors
public CipherSpi ();
// Protected Instance Methods
protected abstract byte[ ] engineDoFinal (byte[ ] input, int inputOffset, int inputLen) throws IllegalBlockSizeExceptionBadPaddingException;
protected abstract int engineDoFinal (byte[ ] input, int inputOffset, int inputLen, byte[ ] output, int outputOffset) throws ShortBufferExceptionIllegalBlockSizeExceptionBadPaddingException;
protected abstract int engineGetBlockSize ();
protected abstract byte[ ] engineGetIV ();
protected abstract int engineGetOutputSize (int inputLen);
protected abstract java.security.AlgorithmParameters engineGetParameters ();
protected abstract void engineInit (int opmode, java.security.Key key, java.security.SecureRandom random) throws java.security.InvalidKeyException;
protected abstract void engineInit (int opmode, java.security.Key key, java.security.spec.AlgorithmParameterSpec params, java.security.SecureRandom random) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
protected abstract void engineInit (int opmode, java.security.Key key, java.security.AlgorithmParameters params, java.security.SecureRandom random) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
protected abstract void engineSetMode (String mode) throws java.security.NoSuchAlgorithmException;
protected abstract void engineSetPadding (String padding) throws NoSuchPaddingException;
protected abstract byte[ ] engineUpdate (byte[ ] input, int inputOffset, int inputLen);
protected abstract int engineUpdate (byte[ ] input, int inputOffset, int inputLen, byte[ ] output, int outputOffset) throws ShortBufferException;
}

Passed To: Cipher.Cipher()

IllegalBlockSizeExceptionJCE 1.2
javax.cryptoserializable checked

Signals that the length of data provided to a block cipher (as implemented, for example, by Cipher and SealedObject) does not match the block size for the cipher.

public class IllegalBlockSizeException extends java.security.GeneralSecurityException {
// Public Constructors
public IllegalBlockSizeException ();
public IllegalBlockSizeException (String msg);
}

Hierarchy: Object-->Throwable(Serializable)-->Exception-->java.security.GeneralSecurityException-->IllegalBlockSizeException

Thrown By: Cipher.doFinal(), CipherSpi.engineDoFinal(), SealedObject.{getObject(), SealedObject()}

KeyAgreementJCE 1.2
javax.crypto

This class provides an API to a key-agreement protocol that allows two or more parties to agree on a secret key without exchanging any secrets and in such a way that an eavesdropper listening in on the communication between those parties cannot determine the secret key. The KeyAgreement class is algorithm-independent and provider-based, so you must obtain a KeyAgreement object by calling one of the static getInstance() factory methods and specifying the name of the desired key agreement algorithm and, optionally, the name of the desired provider of that algorithm. The "SunJCE" provider implements a single key-agreement algorithm named "DiffieHellman".

To use a KeyAgreement object, each party first calls the init() method and supplies a Key object of its own. Then, each party obtains a Key object from one of the other parties to the agreement and calls doPhase(). Each party obtains an intermediate Key object as the return value of doPhase(), and these keys are again exchanged and passed to doPhase(). This process typically repeats n-1 times, where n is the number of parties, but the actual number of repetitions is algorithm-dependent. When doPhase() is called the last time, the second argument must be true to indicate that it is the last phase of the agreement. After all calls to doPhase() have been made, each party calls generateSecret() to obtain an array of bytes or a SecretKey object for a named algorithm type. All parties obtain the same bytes or SecretKey from this method. The KeyAgreement class is not responsible for the transfer of Key objects between parties or for mutual authentication among the parties. These tasks must be accomplished through some external mechanism.

The most common type of key agreement is "DiffieHellman" key agreement between two parties. It proceeds as follows. First, both parties obtain a java.security.KeyPairGenerator for the "DiffieHellman" algorithm and use it to generate a java.security.KeyPair of Diffie-Hellman public and private keys. Each party passes its private key to the init() method of its KeyAgreement object. (The init() method can be passed a java.security.spec.AlgorithmParameterSpec object, but the Diffie-Hellman protocol does not require any additional parameters.) Next, the two parties exchange public keys, typically through some kind of networking mechanism (the KeyAgreement class is not responsible for the actual exchange of keys). Each party passes the public key of the other party to the doPhase() method of its KeyAgreement object. There are only two parties to this agreement, so only one phase is required, and the second argument to doPhase() is true. At this point, both parties call generateSecret() to obtain the shared secret key.

A three-party Diffie-Hellman key agreement requires two phases and is slightly more complicated. Let's call the three parties Alice, Bob, and Carol. Each generates a key pair and uses its private key to initialize its KeyAgreement object, as before. Then Alice passes her public key to Bob, Bob passes his to Carol, and Carol passes hers to Alice. Each party passes this public key to doPhase(). Since this is not the final doPhase(), the second argument is false, and doPhase() returns an intermediate Key object. The three parties exchange these intermediate keys again in the same way: Alice to Bob, Bob to Carol, and Carol to Alice. Now each party passes the intermediate key it has received to doPhase() a second time, passing true to indicate that this is the final phase. Finally, all three can call generateSecret() to obtain a shared key to encrypt future communication.

public class KeyAgreement {
// Protected Constructors
protected KeyAgreement (KeyAgreementSpi keyAgreeSpi, java.security.Provider provider, String algorithm);
// Public Class Methods
public static final KeyAgreement getInstance (String algorithm) throws java.security.NoSuchAlgorithmException;
public static final KeyAgreement getInstance (String algorithm, String provider) throws java.security.NoSuchAlgorithmExceptionjava.security.NoSuchProviderException;
// Public Instance Methods
public final java.security.Key doPhase (java.security.Key key, boolean lastPhase) throws java.security.InvalidKeyExceptionjava.lang.IllegalStateException;
public final byte[ ] generateSecret () throws java.lang.IllegalStateException;
public final SecretKey generateSecret (String algorithm) throws java.lang.IllegalStateExceptionjava.security.NoSuchAlgorithmExceptionjava.security.InvalidKeyException;
public final int generateSecret (byte[ ] sharedSecret, int offset) throws java.lang.IllegalStateExceptionShortBufferException;
public final String getAlgorithm ();
public final java.security.Provider getProvider ();
public final void init (java.security.Key key) throws java.security.InvalidKeyException;
public final void init (java.security.Key key, java.security.spec.AlgorithmParameterSpec params) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
public final void init (java.security.Key key, java.security.SecureRandom random) throws java.security.InvalidKeyException;
public final void init (java.security.Key key, java.security.spec.AlgorithmParameterSpec params, java.security.SecureRandom random) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
}

Returned By: KeyAgreement.getInstance()

KeyAgreementSpiJCE 1.2
javax.crypto

This abstract class defines the service-provider interface for KeyAgreement. A cryptographic provider must implement a concrete subclass of this class for each encryption algorithm it supports. Applications never need to use or subclass this class.

public abstract class KeyAgreementSpi {
// Public Constructors
public KeyAgreementSpi ();
// Protected Instance Methods
protected abstract java.security.Key engineDoPhase (java.security.Key key, boolean lastPhase) throws java.security.InvalidKeyExceptionjava.lang.IllegalStateException;
protected abstract byte[ ] engineGenerateSecret () throws java.lang.IllegalStateException;
protected abstract SecretKey engineGenerateSecret (String algorithm) throws java.lang.IllegalStateExceptionjava.security.NoSuchAlgorithmExceptionjava.security.InvalidKeyException;
protected abstract int engineGenerateSecret (byte[ ] sharedSecret, int offset) throws java.lang.IllegalStateExceptionShortBufferException;
protected abstract void engineInit (java.security.Key key, java.security.SecureRandom random) throws java.security.InvalidKeyException;
protected abstract void engineInit (java.security.Key key, java.security.spec.AlgorithmParameterSpec params, java.security.SecureRandom random) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
}

Passed To: KeyAgreement.KeyAgreement()

KeyGeneratorJCE 1.2
javax.crypto

This class provides an API for generating secret keys for symmetric cryptography. It is similar to java.security.KeyPairGenerator, which generates public/private key pairs for asymmetric or public-key cryptography. KeyGenerator is algorithm-independent and provider-based, so you must obtain a KeyGenerator instance by calling one of the static getInstance() factory methods and specifying the name of the cryptographic algorithm for which a key is desired and, optionally, the name of the security provider whose key-generation implementation is to be used. The "SunJCE" provider includes KeyGenerator implementations for the "DES", "DESede", and "Blowfish" encryption algorithms, and also for the "HmacMD5" and "HmacSHA1" message authentication (MAC) algorithms.

Once you have obtained a KeyGenerator, you initialize it with the init() method. You can provide a java.security.spec.AlgorithmParameterSpec object to provide algorithm-specific initialization parameters or simply specify the desired size (in bits) of the key to be generated. In either case, you can also specify a source of randomness in the form of a SecureRandom object. If you do not specify a SecureRandom, the KeyGenerator instantiates one of its own. None of the algorithms supported by the "SunJCE" provider require algorithm-specific parameters.

After calling getInstance() to obtain a KeyGenerator and init() to initialize it, simply call generateKey() to create a new SecretKey. Remember that the SecretKey must be kept secret. Take precautions when storing or transmitting the key, so that it does not fall into the wrong hands. You may want to use a java.security.KeyStore object to store the key in a password-protected form.

public class KeyGenerator {
// Protected Constructors
protected KeyGenerator (KeyGeneratorSpi keyGenSpi, java.security.Provider provider, String algorithm);
// Public Class Methods
public static final KeyGenerator getInstance (String algorithm) throws java.security.NoSuchAlgorithmException;
public static final KeyGenerator getInstance (String algorithm, String provider) throws java.security.NoSuchAlgorithmExceptionjava.security.NoSuchProviderException;
// Public Instance Methods
public final SecretKey generateKey ();
public final String getAlgorithm ();
public final java.security.Provider getProvider ();
public final void init (java.security.spec.AlgorithmParameterSpec params) throws java.security.InvalidAlgorithmParameterException;
public final void init (java.security.SecureRandom random);
public final void init (int keysize);
public final void init (java.security.spec.AlgorithmParameterSpec params, java.security.SecureRandom random) throws java.security.InvalidAlgorithmParameterException;
public final void init (int keysize, java.security.SecureRandom random);
}

Returned By: KeyGenerator.getInstance()

KeyGeneratorSpiJCE 1.2
javax.crypto

This abstract class defines the service-provider interface for KeyGenerator. A cryptographic provider must implement a concrete subclass of this class for each key-generation algorithm it supports. Applications never need to use or subclass this class.

public abstract class KeyGeneratorSpi {
// Public Constructors
public KeyGeneratorSpi ();
// Protected Instance Methods
protected abstract SecretKey engineGenerateKey ();
protected abstract void engineInit (java.security.SecureRandom random);
protected abstract void engineInit (java.security.spec.AlgorithmParameterSpec params, java.security.SecureRandom random) throws java.security.InvalidAlgorithmParameterException;
protected abstract void engineInit (int keysize, java.security.SecureRandom random);
}

Passed To: KeyGenerator.KeyGenerator()

MacJCE 1.2
javax.cryptocloneable

This class defines an API for computing a message authentication code (MAC) that can check the integrity of information transmitted between two parties that share a secret key. A MAC is similar to a digital signature, except that it is generated with a secret key rather than with a public/private key pair. The Mac class is algorithm-independent and provider-based. Obtain a Mac object by calling one of the static getInstance() factory methods and specifying the name of the desired MAC algorithm and, optionally, the name of the provider of the desired implementation. The "SunJCE" provider implements two algorithms: "HmacMD5" and "HmacSHA1". These are MAC algorithms based on the MD5 and SHA-1 cryptographic hash functions.

After obtaining a Mac object, initialize it by calling the init() method and specifying a SecretKey and, optionally, a java.security.spec.AlgorithmParameterSpec object. The "HmacMD5" and "HmacSHA1" algorithms can use any kind of SecretKey; they are not restricted to a particular cryptographic algorithm. And neither algorithm requires an AlgorithmParameterSpec object.

After obtaining and initializing a Mac object, specify the data for which the MAC is to be computed. If the data is contained in a single byte array, simply pass it to doFinal(). If the data is streaming or is stored in various locations, you can supply the data in multiple calls to update(). End the series of update() calls with a single call to doFinal(). Note that some versions of doFinal() return the MAC data as the function return value. Another version stores the MAC data in a byte array you supply. If you use this version of doFinal(), be sure to call getMacLength() to instantiate an array of the correct length.

A call to doFinal() resets the internal state of a Mac object. If you want to compute a MAC for part of your data and then proceed to compute the MAC for the full data, you should clone() the Mac object before calling doFinal(). Note, however, that Mac implementations are not required to implement Cloneable.

public class Mac implements Cloneable {
// Protected Constructors
protected Mac (MacSpi macSpi, java.security.Provider provider, String algorithm);
// Public Class Methods
public static final Mac getInstance (String algorithm) throws java.security.NoSuchAlgorithmException;
public static final Mac getInstance (String algorithm, String provider) throws java.security.NoSuchAlgorithmExceptionjava.security.NoSuchProviderException;
// Public Instance Methods
public final byte[ ] doFinal () throws java.lang.IllegalStateException;
public final byte[ ] doFinal (byte[ ] input) throws java.lang.IllegalStateException;
public final void doFinal (byte[ ] output, int outOffset) throws ShortBufferExceptionjava.lang.IllegalStateException;
public final String getAlgorithm ();
public final int getMacLength ();
public final java.security.Provider getProvider ();
public final void init (java.security.Key key) throws java.security.InvalidKeyException;
public final void init (java.security.Key key, java.security.spec.AlgorithmParameterSpec params) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
public final void reset ();
public final void update (byte[ ] input) throws java.lang.IllegalStateException;
public final void update (byte input) throws java.lang.IllegalStateException;
public final void update (byte[ ] input, int offset, int len) throws java.lang.IllegalStateException;
// Public Methods Overriding Object
public final Object clone () throws CloneNotSupportedException;
}

Hierarchy: Object-->Mac(Cloneable)

Returned By: Mac.getInstance()

MacSpiJCE 1.2
javax.crypto

This abstract class defines the service-provider interface for Mac. A cryptographic provider must implement a concrete subclass of this class for each MAC algorithm it supports. Applications never need to use or subclass this class.

public abstract class MacSpi {
// Public Constructors
public MacSpi ();
// Public Methods Overriding Object
public Object clone () throws CloneNotSupportedException;
// Protected Instance Methods
protected abstract byte[ ] engineDoFinal ();
protected abstract int engineGetMacLength ();
protected abstract void engineInit (java.security.Key key, java.security.spec.AlgorithmParameterSpec params) throws java.security.InvalidKeyExceptionjava.security.InvalidAlgorithmParameterException;
protected abstract void engineReset ();
protected abstract void engineUpdate (byte input);
protected abstract void engineUpdate (byte[ ] input, int offset, int len);
}

Passed To: Mac.Mac()

NoSuchPaddingExceptionJCE 1.2
javax.cryptoserializable checked

Signals that no implementation of the requested padding scheme can be found.

public class NoSuchPaddingException extends java.security.GeneralSecurityException {
// Public Constructors
public NoSuchPaddingException ();
public NoSuchPaddingException (String msg);
}

Hierarchy: Object-->Throwable(Serializable)-->Exception-->java.security.GeneralSecurityException-->NoSuchPaddingException

Thrown By: Cipher.getInstance(), CipherSpi.engineSetPadding()

NullCipherJCE 1.2
javax.crypto

This trivial subclass of Cipher implements an identity cipher that does not transform plain text in any way. Unlike Cipher objects returned by Cipher.getInstance(), a NullCipher must be created with the NullCipher() constructor.

public class NullCipher extends Cipher {
// Public Constructors
public NullCipher ();
}

Hierarchy: Object-->Cipher-->NullCipher

SealedObjectJCE 1.2
javax.cryptoserializable

This class is a wrapper around a serializable object. It serializes the object and encrypts the resulting data stream, thereby protecting the confidentiality of the object. Create a SealedObject by specifying the object to be sealed and a Cipher object to perform the encryption. Retrieve the sealed object by calling getObject() and specifying the Cipher or java.security.Key to use for decryption. The SealedObject keeps track of the encryption algorithm and parameters so that a Key object alone can decrypt the object.

public class SealedObject implements Serializable {
// Public Constructors
public SealedObject (Serializable object, Cipher c) throws java.io.IOExceptionIllegalBlockSizeException;
// Public Instance Methods
public final String getAlgorithm ();
public final Object getObject (java.security.Key key) throws java.io.IOExceptionClassNotFoundExceptionjava.security.NoSuchAlgorithmExceptionjava.security.InvalidKeyException;
public final Object getObject (Cipher c) throws java.io.IOExceptionClassNotFoundExceptionIllegalBlockSizeExceptionBadPaddingException;
public final Object getObject (java.security.Key key, String provider) throws java.io.IOExceptionClassNotFoundExceptionjava.security.NoSuchAlgorithmExceptionjava.security.NoSuchProviderExceptionjava.security.InvalidKeyException;
}

Hierarchy: Object-->SealedObject(Serializable)

SecretKeyJCE 1.2
javax.cryptoserializable

This interface represents a secret key used for symmetric cryptographic algorithms that depend on both the sender and receiver knowing the same secret. SecretKey extends the java.security.Key interface, but does not add any new methods. The interface exists in order to keep secret keys distinct from the public and private keys used in public-key, or asymmetric, cryptography. See also java.security.PublicKey and java.security.PrivateKey.

A secret key is nothing more than arrays of bytes and does not require a specialized encoding format. Therefore, an implementation of this interface should return the format name "RAW" from getFormat() and should return the bytes of the key from getEncoded(). (These two methods are defined by the java.security.Key interface that SecretKey extends.)

public abstract interface SecretKey extends java.security.Key {
}

Hierarchy: (SecretKey(java.security.Key(Serializable)))

Implementations: javax.crypto.spec.SecretKeySpec

Passed To: SecretKeyFactory.{getKeySpec(), translateKey()}, SecretKeyFactorySpi.{engineGetKeySpec(), engineTranslateKey()}

Returned By: KeyAgreement.generateSecret(), KeyAgreementSpi.engineGenerateSecret(), KeyGenerator.generateKey(), KeyGeneratorSpi.engineGenerateKey(), SecretKeyFactory.{generateSecret(), translateKey()}, SecretKeyFactorySpi.{engineGenerateSecret(), engineTranslateKey()}

SecretKeyFactoryJCE 1.2
javax.crypto

This class defines an API for translating a secret key between its opaque SecretKey representation and its transparent javax.crypto.SecretKeySpec representation. It is much like java.security.KeyFactory, except that it works with secret (or symmetric) keys rather than with public and private (asymmetric) keys. SecretKeyFactory is algorithm-independent and provider-based, so you must obtain a SecretKeyFactory object by calling one of the static getInstance() factory methods and specifying the name of the desired secret-key algorithm and, optionally, the name of the provider whose implementation is desired. The "SunJCE" provider provides SecretKeyFactory implementations for the "DES", "DESede", and "PBEWithMD5AndDES" algorithms.

Once you have obtained a SecretKeyFactory, use generateSecret() to create a SecretKey from a java.security.spec.KeySpec (or its subclass, javax.crypto.spec.SecretKeySpec). Or call getKeySpec() to obtain a KeySpec for a Key object. Because there can be more than one suitable type of KeySpec, getKeySpec() requires a Class object to specify the type of the KeySpec to be created. See also DESKeySpec, DESedeKeySpec, and PBEKeySpec in the javax.crypto.spec package.

public class SecretKeyFactory {
// Protected Constructors
protected SecretKeyFactory (SecretKeyFactorySpi keyFacSpi, java.security.Provider provider, String algorithm);
// Public Class Methods
public static final SecretKeyFactory getInstance (String algorithm) throws java.security.NoSuchAlgorithmException;
public static final SecretKeyFactory getInstance (String algorithm, String provider) throws java.security.NoSuchAlgorithmExceptionjava.security.NoSuchProviderException;
// Public Instance Methods
public final SecretKey generateSecret (java.security.spec.KeySpec keySpec) throws java.security.spec.InvalidKeySpecException;
public final String getAlgorithm ();
public final java.security.spec.KeySpec getKeySpec (SecretKey key, Class keySpec) throws java.security.spec.InvalidKeySpecException;
public final java.security.Provider getProvider ();
public final SecretKey translateKey (SecretKey key) throws java.security.InvalidKeyException;
}

Returned By: SecretKeyFactory.getInstance()

SecretKeyFactorySpiJCE 1.2
javax.crypto

This abstract class defines the service-provider interface for SecretKeyFactory. A cryptographic provider must implement a concrete subclass of this class for each type of secret key it supports. Applications never need to use or subclass this class.

public abstract class SecretKeyFactorySpi {
// Public Constructors
public SecretKeyFactorySpi ();
// Protected Instance Methods
protected abstract SecretKey engineGenerateSecret (java.security.spec.KeySpec keySpec) throws java.security.spec.InvalidKeySpecException;
protected abstract java.security.spec.KeySpec engineGetKeySpec (SecretKey key, Class keySpec) throws java.security.spec.InvalidKeySpecException;
protected abstract SecretKey engineTranslateKey (SecretKey key) throws java.security.InvalidKeyException;
}

Passed To: SecretKeyFactory.SecretKeyFactory()

ShortBufferExceptionJCE 1.2
javax.cryptoserializable checked

Signals that an output buffer is too short to hold the results of an operation.

public class ShortBufferException extends java.security.GeneralSecurityException {
// Public Constructors
public ShortBufferException ();
public ShortBufferException (String msg);
}

Hierarchy: Object-->Throwable(Serializable)-->Exception-->java.security.GeneralSecurityException-->ShortBufferException

Thrown By: Cipher.{doFinal(), update()}, CipherSpi.{engineDoFinal(), engineUpdate()}, KeyAgreement.generateSecret(), KeyAgreementSpi.engineGenerateSecret(), Mac.doFinal()



Library Navigation Links

Copyright © 2001 O'Reilly & Associates. All rights reserved.
